Liquid temperature: Min 5˚C (41˚F), max 60˚C (140˚F) Liquid density: Min .65g/cm, max 1.5g/cm Protection: IP68 @ 20m (65ft) Working pressure: .35MPa Switching speed: 600/min Contact life: 10,000 switches Contact type: Microswitch with NO and NC contacts Switching angle: 25˚ (from horizontal) Max voltage: 240Vac 50/60Hz Max run current: 6 Amps (COS 0) Cable material: Neoprene rubber Cable size: ø7mm / 3 x .75mm² Housing material: ABS - Acrylonine butadiene styrene Chemical resistance: Acid - Good Alkaline - Good Petro - Good
Secure cable at appropriate height to ensure desired switch levels are achieved

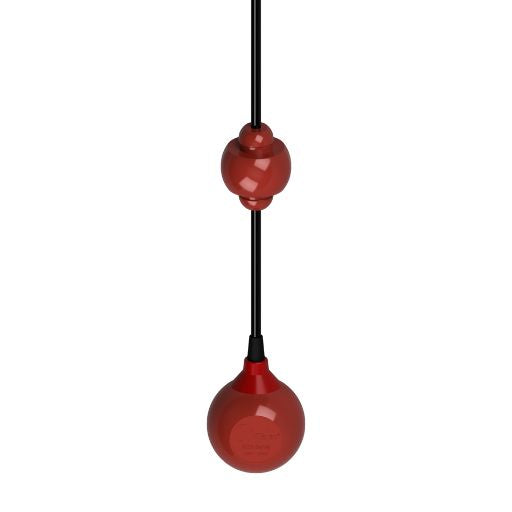

The differential between switching ‘On/Off’ or ‘Off/On’ can be adjusted by moving the cable weight position relative to the float switch. The further the weight is situated from the float switch the greater the switching differential
